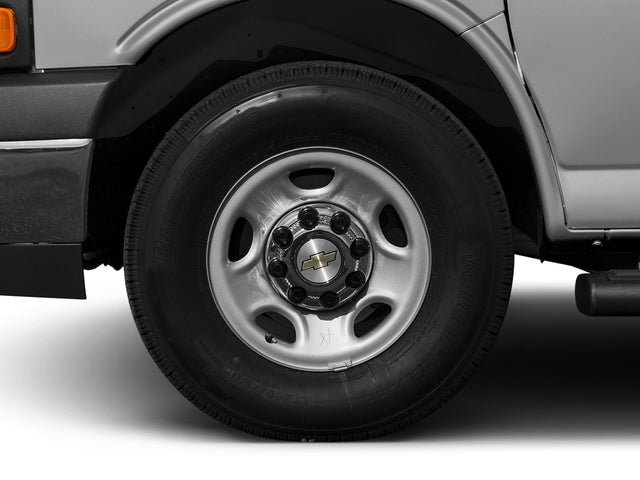

• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm) steel includes Gray center caps and steel spare
• Tires, front LT245/75R16E all-season, blackwall
• Tires, rear LT245/75R16E all-season, blackwall
• Tire, spare LT245/75R16E all-season, blackwall
• Body, standard
• Bumpers, front and rear painted Black with step-pad (Deleted when (V37) front and rear chrome bumpers is ordered.)

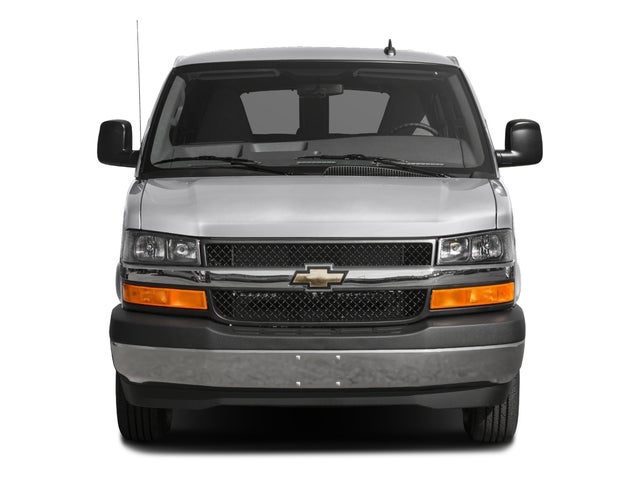

• Grille, Black composite with single rectangular halogen headlamps
• Headlamps, halogen
• Mirrors, outside manual, Black
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Glass, swing-out side door windows
• Glass, swing-out rear cargo door windows
• Glass, enhanced-technology, rearmost side windows. 3-layer special glass is designed to help reduce the risk of ejection during a crash
• Glass, full-body window package (Includes (A18) swing-out rear cargo door window glass and (A19) swing-out side door window glass.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out passenger-side, 60/40 split

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (NP5) leather wrapped steering wheel.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds, includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Included and only available with (UE1) OnStar. Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)

• Seats, front bucket with vinyl trim and head restraints, includes inboard armrests (Requires (**W) interior trim. When ordering a seating arrangement that includes rear seats, includes rear bench seats with vinyl trim. Head restraints are not available on rear bench seats.)
• Seating, 12-passenger, (2-3-3-4 seating configuration) 4-passenger seat is a 50/50 split, 2-piece configuration
• Power outlet, 120-volt
• Floor covering, full-length Black rubberized-vinyl
• Steering wheel steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Convenience Package power windows and door locks (Includes (AU3) power door locks, power windows and (KI4) 110-volt power outlets. NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Door locks, power with lock-out protection (NOTE: Does not include (ATG) Remote Keyless Entry. (ATG) Remote Keyless Entry must be ordered separately.)
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, single-zone manual
• Defogger, front and side windows
• Headliner, cloth
• Visors, driver and front passenger, cloth, padded (Not available on CG33706 models. Not available with (TR9) auxiliary lighting or (C69) rear air conditioning or (DAA) driver and front passenger vinyl visors or (DH6) driver and front passenger visors padded with cloth trim.)
• Assist handle, driver and right-front passenger
• Lighting, interior with 2 dome lights defeat switch and door handle-activated switches
• OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Vehicle Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)

• StabiliTrak, traction assistance and vehicle stability enhancement system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, driver and right front passenger seat-mounted side-impact and head curtain side-impact, provides coverage for first 3-rows only. Enhanced-technology glass is provided for the fourth and fifth rows when equipped with 12- and 15-passenger seating. (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bag deactivation switch, frontal, passenger side (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Vehicle Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for vehicle availability, details and system limitations. Services may vary by model and conditions.
• Child seat anchors all three passenger rear seats have four anchors and two tethers
• Tire Pressure Monitoring System (does not apply to spare tires)

LS PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

LIGHTING, AUXILIARY

• with reading and underhood lights

VISORS, DRIVER AND FRONT PASSENGER, PADDED WITH CLOTH TRIM

• and dual vanity mirrors
• illuminated on passenger-side

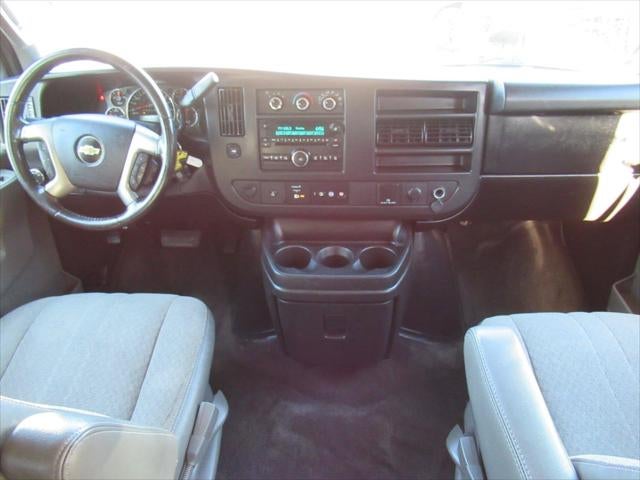

CONSOLE, DELUXE

• with swing-out storage bin

AIR CONDITIONING, REAR

• Includes (C36) rear heater
• (U80) digital compass and (KG3) 145-amp alternator.

COMPASS, 8-POINT DIGITAL

• located in the Driver Information Center

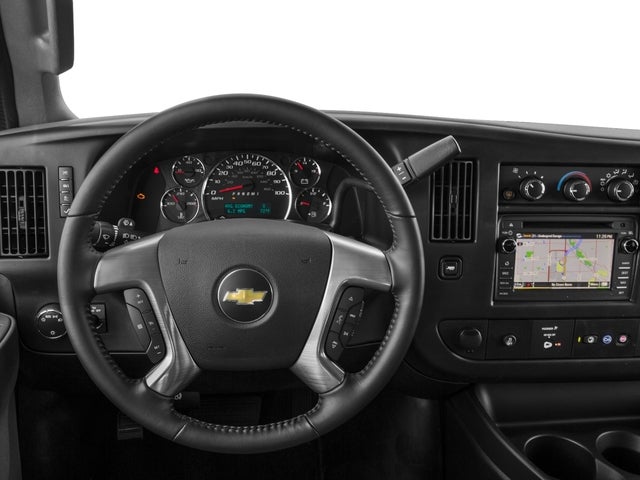

STEERING WHEEL CONTROLS

• mounted audio controls

AUDIO SYSTEM, AM/FM STEREO WITH CD/MP3 PLAYER

• seek-and-scan
• digital clock
• auto-tone control
• Radio Data System (RDS)
• TheftLock
• random select
• auxiliary jack and 2 front door speakers

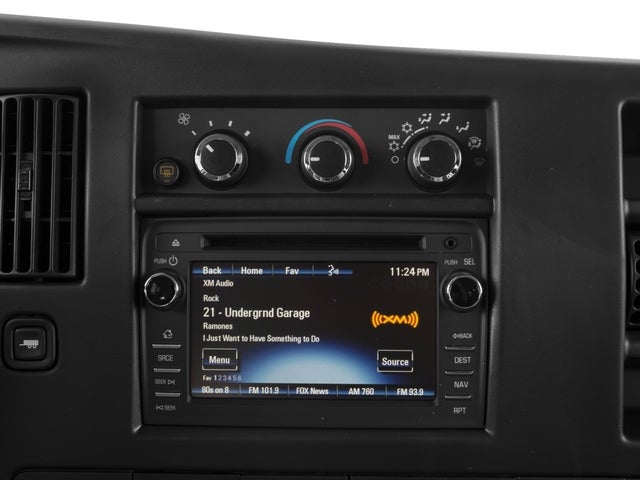

SIRIUSXM SATELLITE RADIO

• is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music
• plus sports
• news and entertainment. Plus listening on the app and online is included
• so you'll hear the best SiriusXM has to offer
• anywhere life takes you. Welcome to the world of SiriusXM.

FLOOR COVERING, FULL-FLOOR COLOR-KEYED CARPETING

• with front and rear rubberized vinyl floor mats

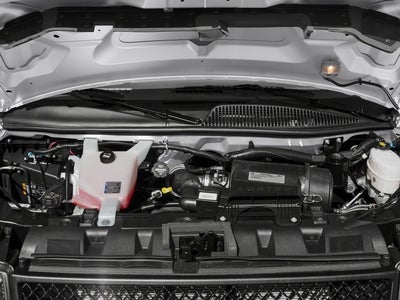

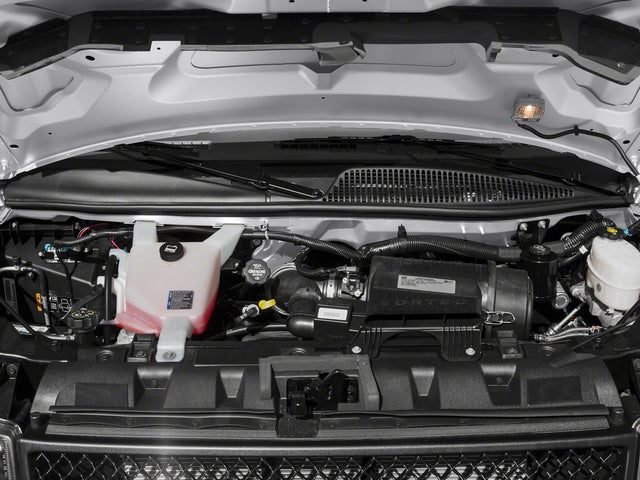

ENGINE, VORTEC 4.8L V8 SFI

• (285 hp [212.5 kW] @ 5400 rpm
• 295 lb-ft of torque [398.3 N-m] @ 4600 rpm) (STD) (Includes external engine oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode and internal transmission oil cooler (STD) (Includes external engine oil cooler.

EMISSIONS OVERRIDE, FEDERAL

• (for vehicles ordered by dealers in Federal emission states with (YF5) or (NE1) emissions - Not required for vehicles being shipped to California
• Connecticut
• Delaware
• Maine
• Maryland
• Massachusetts
• New Jersey
• New York
• Oregon
• Pennsylvania
• Rhode Island
• Vermont or Washington)

Bluetooth® FOR PHONE

• personal cell phone connectivity to vehicle audio system

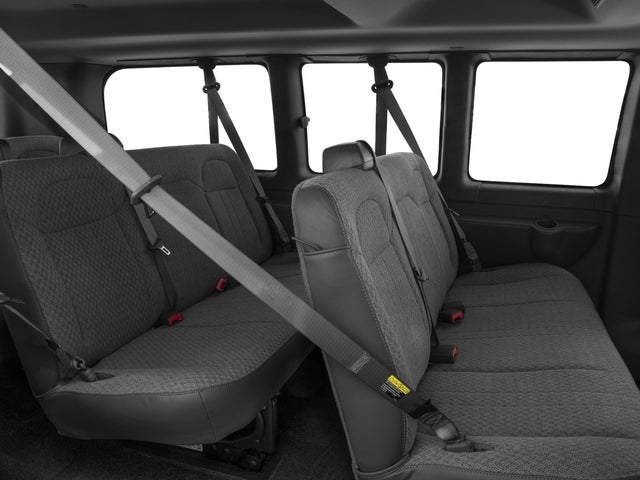

SEATING, 12-PASSENGER, (2-3-3-4 SEATING CONFIGURATION)

• 4-passenger seat is a 50/50 split
• 2-piece configuration (STD)

PAINT, SOLID

• (STD)

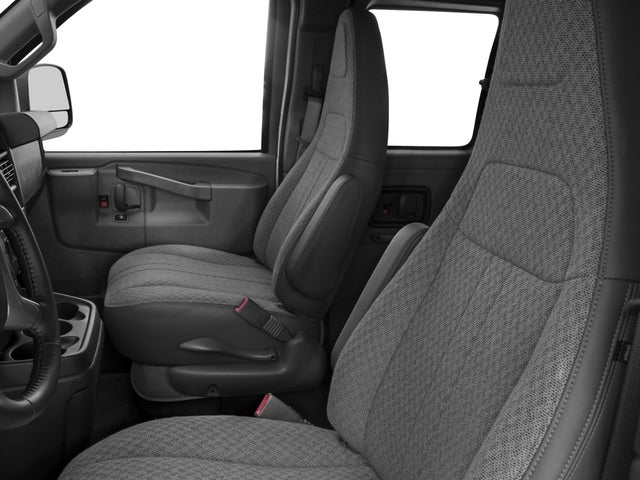

SEATS, FRONT BUCKET WITH VINYL TRIM

• and head restraints
• includes inboard armrests (STD)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers (STD)

• 12-Passenger Seating (2-3-3-4 Seating Configuration)
• 16' X 6.5' Steel Wheels
• 3.42 Rear Axle Ratio
• 8,600 lbs (3,901 Kgs) GVWR
• Bluetooth® For Phone
• CT/DE/ME/MD/MA/NJ/NY/OR/PA/RI/VT/WA Emission Requirements
• Cyber Gray Metallic
• Electronic 6-Speed Heavy Duty Automatic Transmission with Overdrive
• Federal Emissions Override
• Front LT245/75R16E AS BW Tires
• Full-Floor Color-Keyed Carpeting
• Inside Rearview Manual Day/night Mirror
• Medium Pewter
• Rear LT245/75R16E AS BW Tires
• Spare LT245/75R16 AS BW Tire
• Vortec 4.8L V8 SFI Engine
• AM/FM Stereo with CD/MP3 Player
• Auxiliary Lighting
• Convenience Package
• Leather-Wrapped Steering Wheel
• Preferred Equipment Group 1LS
• Rear Air Conditioning
• Reclining Front Bucket Seats with Inboard Armrests
• 12V power outlets 2 12V power outlets
• 3-point seatbelt Rear seat center 3-point seatbelt
• ABS Brakes 4-wheel antilock (ABS) brakes
• ABS Brakes Four channel ABS brakes
• Accessory power Retained accessory power
• Air conditioning Yes
• Alternator Type Alternator
• Antenna Fixed audio antenna
• App Link Smart device integration MirrorLink smart device app link
• Armrests front driver Driver seat armrest
• Armrests front passenger Front passenger seat armrest
• Audio theft deterrent TheftLock audio system theft deterrent
• Auto headlights Auto on/off headlight control
• Aux input jack Auxiliary input jack
• Auxiliary rear heater
• Basic warranty 36 month/36,000 miles
• Battery charge warning
• Battery run down protection
• Battery type Lead acid battery
• Bench seats Third-row bench seat
• Beverage holders Front beverage holders
• Body panels Fully galvanized steel body panels with side impact beams
• Brake type 4-wheel disc brakes
• Bumper rub strip rear Black rear bumper rub strip
• Bumpers front Black front bumper
• Bumpers rear Black rear bumper
• CD location CD player located in the dashboard/instrument panel
• CD Single-disc CD player
• CD-R compatible
• Child door locks Manual rear child safety door locks
• Climate control Manual climate control
• Clock Digital clock
• Compass
• Convex spotter Driver and passenger convex spotter mirrors
• Corrosion perforation warranty 72 month/100,000 miles
• Cruise control Cruise control with steering wheel mounted controls
• Cylinder head material Aluminum cylinder head
• Day/Night rearview mirror
• Delay off headlights Delay-off headlights
• Door bins front Driver and passenger door bins
• Door handle material Black door handles
• Door locks Power door locks
• Door mirror style Black door mirrors
• Door mirror type Standard style side mirrors
• Drive type Rear-wheel drive
• Driver information center
• Driver seat direction Driver seat with 4-way directional controls
• Electronic stability control StabiliTrak electronic stability control system
• Emergency SOS Capable OnStar vehicle integrated emergency SOS system
• Emissions Federal emissions
• Emissions tiers Tier 2 Bin 8 emissions
• Engine block material Iron engine block
• Engine compartment light
• Engine Configuration Vortec V8
• Engine cooler Engine oil cooler
• Engine hour meter
• Engine Location Front mounted engine
• Engine Mounting direction Longitudinal mounted engine
• Engine Short Vortec 4.8L V-8
• Engine Vortec 4.8L V-8 variable valve control, regular gasoline, engine with 285HP
• Engine/electric motor temperature gauge
• Equalizer Automatic audio equalizer
• External memory Chevrolet MyLink external memory control
• First-row windows Power first-row windows
• Floor console Partial floor console
• Floor console storage Covered floor console storage
• Floor coverage Full floor coverage
• Floor covering Full carpet floor covering
• Floor mats Rubber front and rear floor mats
• Folding door mirrors Manual folding door mirrors
• Fourth-row seat facing Front facing fourth-row seat
• Fourth-row seat fixed or removable Removable fourth-row seats
• Fourth-row seat type Fourth-row bench seat
• Fourth-row seats folding 50-50 folding fourth-row passenger seat
• Front anti-roll Front anti-roll bar
• Front head restraints Fixed front seat head restraints
• Front impact airbag driver Driver front impact airbag
• Front impact airbag passenger Cancellable front passenger air bag
• Front reading lights
• Front seat upholstery Cloth front seat upholstery
• Front seatback upholstery Vinyl front seatback upholstery
• Front side impact airbag driver Seat mounted side impact driver airbag
• Front side impact airbag passenger Seat mounted side impact front passenger airbag
• Fuel Type Regular gasoline
• Gearshifter material Urethane gear shifter material
• Grille style Black grille
• Handsfree Bluetooth® handsfree wireless device connectivity
• Headlight type Sealed beam headlights
• Headlights Halogen headlights
• Headlights on reminder
• Headliner coverage Full headliner coverage
• Headliner material Cloth headliner material
• Height adjustable seatbelts Front height adjustable seatbelts
• High mount stop light High mounted center stop light
• Ignition Spark ignition system
• Ignition type Mechanical
• Immobilizer
• Instrumentation display Analog instrumentation display
• Interior 120V AC power outlets 1 interior 120V AC power outlet
• Internet access OnStar 4G LTE mobile hotspot internet access
• Key in vehicle warning
• Laminated window Laminated side window glass
• License plate front bracket Front license plate bracket
• Lock-up transmission
• Low level warnings Low level warning for fuel
• Low tire pressure warning Tire specific low air pressure warning
• Maintenance warranty 24 month/24,000 miles
• Manual driver seat controls Driver seat manual reclining and fore/aft control
• Manual passenger seat controls Passenger seat manual reclining and fore/aft control
• Number of airbags 6 airbags
• Number of doors 3 doors
• Occupancy sensor Airbag occupancy sensor
• Oil pressure gauge
• One-touch down window Driver one-touch down window
• Overdrive transmission
• Overhead airbags Curtain first, second and third-row overhead airbags
• Paint Metallic paint
• Passenger doors rear right Split swing-out right rear passenger door
• Passenger seat direction Front passenger seat with 4-way directional controls
• Powertrain type ICE
• Powertrain warranty 60 month/60,000 miles
• Radiator
• Radio AM/FM
• RDS Radio data system (RDS)
• Rear bumper step

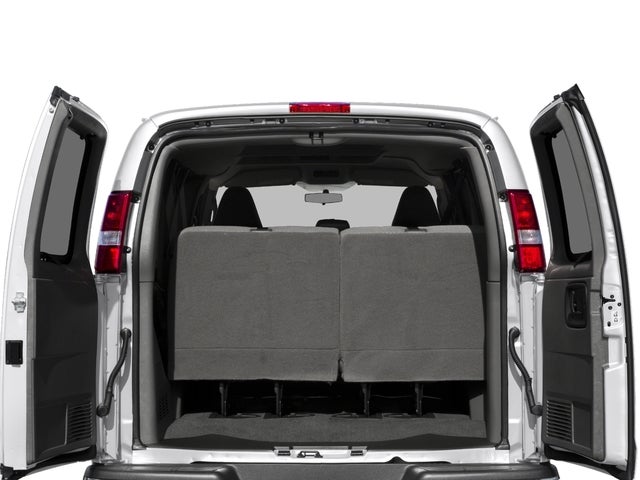

• Rear cargo door Split swing-out rear cargo door
• Rear cargo floor type Carpet rear cargo area floor
• Rear cargo light Rear cargo area light
• Rear climate control Rear climate control with rear controls
• Rear headliner/pillar ducts Rear headliner/pillar climate control ducts
• Rear reading lights
• Rear seat direction Front facing rear seat
• Rear seat upholstery Cloth rear seat upholstery
• Rear seatback upholstery Carpet rear seatback upholstery
• Rear Springs Regular grade rear springs
• Rear under seat ducts Rear under seat climate control ducts
• Rear window trim Black rear window trim
• Rear windshield Vented rear windshield
• Roadside warranty 60 month/60,000 miles
• Running lights Daytime running lights
• Satellite trial 3 month satellite trial subscription
• Seating capacity 12
• Second-row seats fixed or removable Removable second-row seats
• Second-row seats Second-row bench seat
• Second-row windows Manually vented second-row windows
• Seek scan
• Selectable mode transmission
• Service interval warning Service interval indicator
• Shock absorbers Gas-pressurized shock absorbers
• Spare tire Full-size spare tire with steel wheel
• Spare tire location Crank-down spare tire
• Speakers number 2 speakers
• Speakers Standard grade speakers
• Special paint Monotone paint
• Speed sensitive volume
• Split front seats Bucket front seats
• Springs front Front coil springs
• Springs rear Rear leaf springs
• Steering Hydraulic power-assist steering system
• Steering mounted audio control Steering wheel mounted audio controls
• Steering type Re-circulating ball steering
• Steering wheel material Leather steering wheel
• Steering wheel tilt Manual tilting steering wheel
• Sun visor strip
• Suspension ride type front Independent front suspension
• Suspension ride type rear Rigid axle rear suspension
• Suspension Standard ride suspension
• Suspension type front Short and long arm front suspension
• Suspension type rear Leaf spring rear suspension
• Tachometer
• Tailgate control Tailgate/power door lock
• Tailpipe Partial stainless steel single exhaust
• Third-row seat facing Front facing third-row seat
• Third-row seat fixed or removable Removable third-row seats
• Third-row seat upholstery Cloth rear seat upholstery
• Third-row seatback upholstery Carpet third-row seatback upholstery
• Third-row windows Fixed third-row windows
• Tinted windows Deep tinted windows
• Tires LT245/75SR16 AS BSW front and rear tires
• Traction control All-speed ABS and driveline traction control
• Transmission 6-speed automatic
• Transmission oil cooler
• Transmission Type Automatic
• Trip computer
• Trip odometer
• Turn-by-turn nav OnStar Turn-by-Turn Navigation
• USB ports 1 USB port
• Variable panel light Variable instrument panel light
• Vehicle tracker Vehicle tracker with vehicle slowdown
• Ventilated brakes Front and rear ventilated disc brakes
• Visor driver mirror Driver visor mirror
• Visor illuminated passenger mirror Illuminated passenger visor mirror
• Visor passenger mirror Passenger visor mirror
• Voltmeter
• Wheel covers Wheel hub covers
• Wheels 16 x 6.5-inch front and rear gray steel wheels
• Window Trim Black side window trim
• Windshield trim Black windshield trim
• Wipers Variable intermittent front windshield wipers

• Vehicle
• Rear Door Type: Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): 13
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 13000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1215
• Maximum Trailering Capacity (lbs): 9800
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.18
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2060
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 83.90
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): 49.40
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 19.40
• Step Up Height - Side (in): 19.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 126.20
• Cargo Area Length @ Floor to Seat 2 (in): 89.13
• Cargo Area Length @ Floor to Seat 3 (in): 57.16
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.40
• Cargo Box (Area) Height (in): 51.80
• Cargo Volume to Seat 1 (ft³): 216.2
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 92.1
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Second Head Room (in): 38.40
• Second Leg Room (in): 36.30
• Second Shoulder Room (in): 68.60
• Second Hip Room (in): 68.60
• Third Head Room (in): 38.50
• Third Leg Room (in): 36.60
• Third Shoulder Room (in): 65.80
• Third Hip Room (in): 63.30
• Fourth Head Room (in): 37.60
• Fourth Leg Room (in): 36.60
• Fourth Shoulder Room (in): 69.10
• Fourth Hip Room (in): 65.70
• Summary
• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.9
